- Acrovyn et Acrovyn PVC-Free

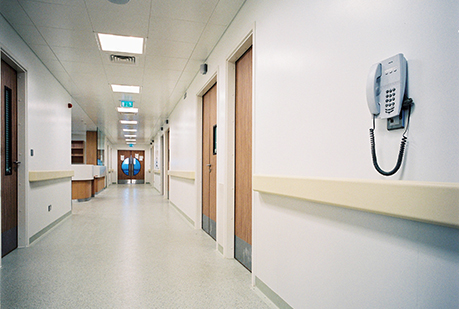

Main-courante/pare-chocs de 140mm de hauteur offrant une protection extrême contre les impacts et un excellent soutien à la mobilité dans les zones de circulation.
- Résistance extrême
- Quick Lock
- Bords arrondis pour une préhension confortable
- Revêtement souple qui absorbe les chocs
- Coussin amortisseur continu pour une protection accrue contre les chocs
- Consoles Quick Lock pour une installation rapide et un entretien facile
- Infill strip closes off retainer channel for ease of cleaning
- Option anti-pendaison avec console continue en aluminium thermolaqué
- Couleurs unies :
Acrovyn (27) | Acrovyn PVC-Free (15)
Options d'installation
- Acrovyn
HRB-4C – QUICK LOCK
HRB-4CAL – ANTI-PENDAISON - Acrovyn PVC-Free
HRB-4CN – QUICK LOCK
HRB-4CALN – ANTI-PENDAISON
QUICK LOCK
ANTI-PENDAISON
Système de fixation breveté. Robuste et efficace, il facilite l'installation des mains-courantes/pare-chocs Acrovyn.
How does it work?
The unique cam lock on the bracket simply slots into the back of the retainer, and the profile is locked or unlocked with the twist of a spanner. This allows faster installation, but also enables fast removal for maintenance, without compromising the integrity of the wall fixings.
Avantages :
- No more drilling holes in the retainer
- No more struggling with component alignment
- Ease of bracket location and attachment
- Allows for pre-assembly of retainer, cover and end caps off-site
- Allows for easy maintenance
- Offers long term savings
Colours & Finishes
- Couleurs unies :
Acrovyn (27) | Acrovyn PVC-Free (15)
Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Stock Lengths & Fixings
- Acrovyn : 4.0m
Acrovyn PVC-Free : 3.0m - Consoles tous les 800mm max. Fixation sur montant ou panneau recommandée
Accessoires
- End caps
- External corners
- Consoles Quick Lock (standard)
- Consoles anti-pendaison (en option)
- Bague décorative verticale (en option) – Noir (standard) ou gris clair
- Kit démontable pour gaines techniques
